Pyramid Shaped Skylight

The pyramid shaped skylight is named after its appearance. Through continuous practice, this type of window has a certain slope, so it is not easy to accumulate water and does not require too much energy to maintain. This type of window can bring in more natural light and visually expand the interior space.

Good waterproof of the structure

100% waterproof and anti pinch

CE/NFRC standard certification

US/AU IGCC standard glass certification

100% thermal insulation/windproof/ soundproof

Leave Message Send Emailmarket@maplemiles.com

Reasons of Choosing Pyramid Shaped Skylight

Large Lighting Area by 15-60° Tilt

The pyramid skylight can actively capture the sunlight track at different times through a precise 15-60° multi-angle adjustment system. Compared with traditional flat skylights, its three-dimensional inclined structure can increase the light-transmitting area by more than 30%, and evenly increase the indoor illumination by 50%.

Waterproof by Self Structure

First, the structural self-waterproof design diverts rainwater through the slope; second, the high-density EPDM sealing strips achieve seamless docking; finally, the patented profile bite technology completely replaces the traditional silicone caulking. After 24-hour spray test by the National Testing Center, it still maintains zero leakage in a simulated typhoon environment of level 10.

Modular Assembly by Factory

Each set of pyramid shaped skylights for homes contains multiple prefabricated modules, which are installed using a snap-on design and other tools. On-site only needs to be assembled “building blocks” according to the number, and 2 experienced workers can complete the standard size installation in 4 hours. We provide a three-dimensional installation manual and a supporting video guidance system.

Ventilation by the Structure

The pyramid shaped skylight forms a natural chimney effect and the air convection efficiency driven by temperature difference is 40% higher than that of ordinary pyramid roof windows. The top openable fan blade adopts an aerodynamic design, which can achieve 6-8 full-house air replacements per hour without the need for electricity. Tests show that under a 35°C environment, the temperature of the factory workshop where the pyramid roof lantern is installed is 3-5°C lower than that of similar buildings.

Free Maintenance by Frame

Rainwater flushing can decompose more than 90% of pollutants. The structure can withstand rain and snow loads and 12-level wind pressure. After the test of -30℃ severe cold and 1.2 meters of snow, the pyramid lantern rooflight opening mechanism still maintains 100% normal operation, and the pyramid skylight cost as well as maintenance cost is minimal.

Expand Space by Convex Design

The convex design modular skylights creates a three-dimensional light well, and the visual height of the floor is increased by 30% through light refraction. In an apartment renovation project, after installing a 1.5m×1.5m pyramid rooflights, the customer reported that the sense of space is comparable to the additional 5㎡ area. It is especially suitable for residences with a floor height of less than 2.8m, which can effectively alleviate the oppression of low spaces.

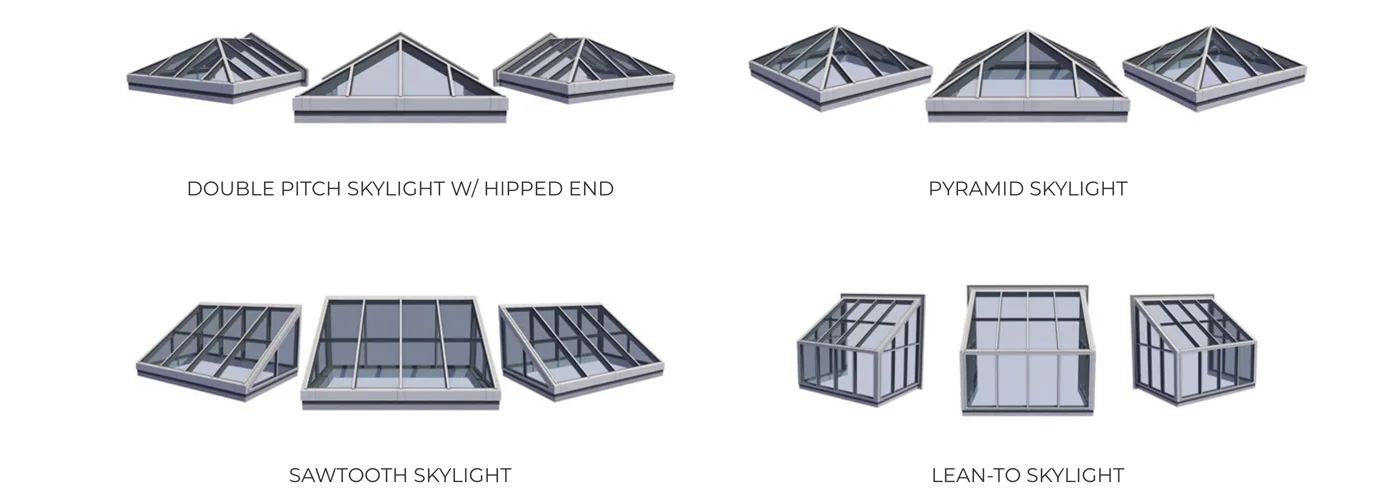

Drawing of Pyramid Shaped Skylight

Application of Pyramid Shaped Skylights

Residential Applications

On common flat-roofed buildings, we achieve perfect connection through customized bases. It is especially suitable for some houses with relatively small spaces. Using pyramid sky light instead of additional light wells not only reduces the water leakage rate, but also improves the indoor lighting.

Commercial Applications

It is often seen that the atrium of shopping malls in shopping malls adopts an array of large triangular skylights. This is generally a fixed skylight or extended pyramid skylight, which relies entirely on natural lighting during the day, which saves a lot of lighting costs. At night, this motorized skylight can design unique effects with lights to increase passenger flow.

Agricultural Applications

This roof pyramid skylights are often used as the top of a greenhouse. Its great feature is that it can use special light transmittance glass. It can achieve intelligent temperature control while ensuring 75% UV transmittance. Thereby shortening the crop growth cycle and increasing annual output.

Public Applications

Pyramid skylights equipped with explosion-proof glass can be installed in halls such as stations, airports, and libraries. This application can not only meet the needs of fire smoke exhaust, but also create an open and bright environment, increase space orientation and customer experience.

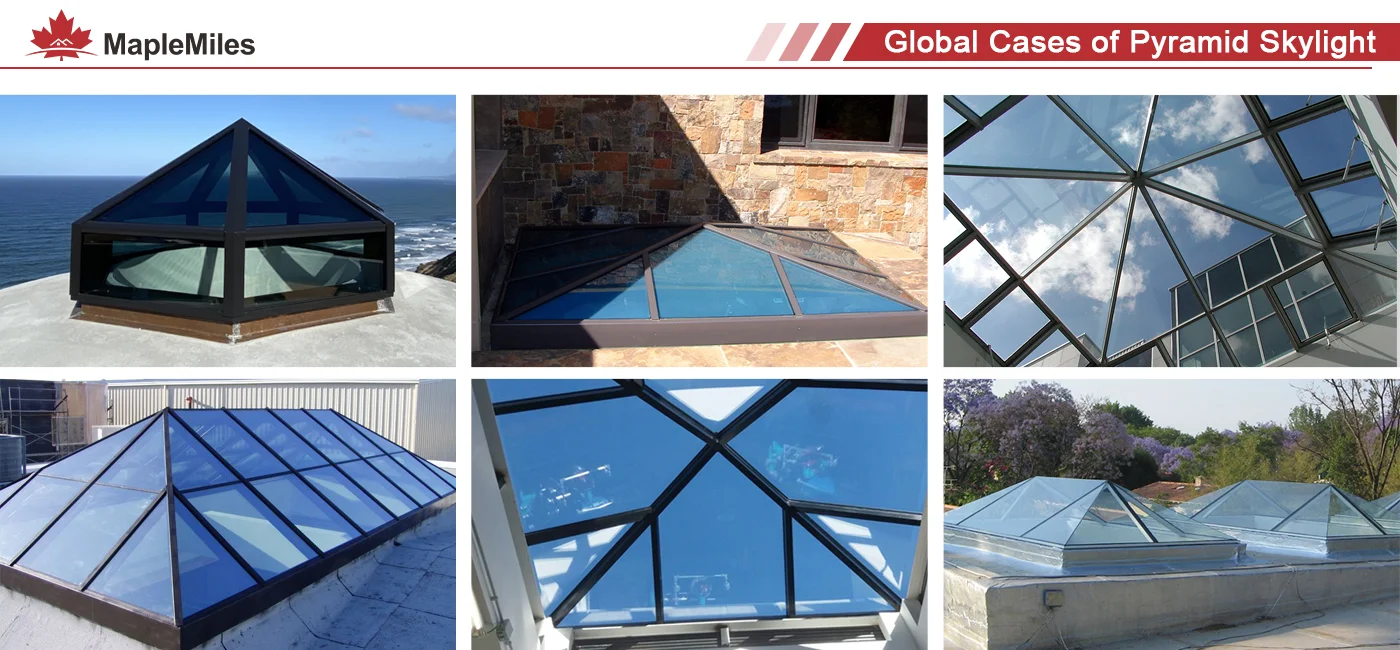

Cases of MapleMiles Pyramid Shaped Skylight

Technical Difficulties of Pyramid Shaped Skylights

Technical Experience System

This special shape of glass pyramid skylight requires engineers to be extremely professional. Especially structural safety issues. The engineer needs to consider wind and snow load capacity, seismic grade requirements, etc. in combination with the local climate. MapleMiles engineers have rich experience and industry-related certificates.

Installation Service System

Pyramid skylights are more difficult to install than ordinary skylights. MapleMiles provides free installation instructions and installation guidance videos for your reference. You only need to assemble according to the markings. In addition, MapleMiles quality engineers also provide 24-hour online services. Here a more cases about MapleMiles skylight on YouTube.

ISO EMS Certificate of Pyramid Shaped Skylight

ISO QMS Certificate of Pyramid Shaped Skylight

CE Certificates of Pyramid Shaped Skylight

MapleMiles Support for Roof Pyramid Shaped Skylights

Customized Production Capability of Pyramid Shaped Skylight

The factory is equipped with an automated production line that can achieve high-precision processing. In addition, due to its rich project experience, the MapleMiles factory can cope with the production of various customized sizes. Contact now to communicate drawings and production schedules in advance!

Quality Assurance of Pyramid Shaped Skylight

Many customers will worry about quality issues when importing pyramid skylights from abroad, while MapleMiles provides at least ten years of quality assurance! And there is a strict quality inspection system from raw materials to finished products, and each batch of products provides a detailed quality inspection report. In addition, the finished products have international certificates such as ISO and CE to ensure product quality.

Conclusion

Contact MapleMiles now to get a free pyramid skylight design and the best pyramid skylights price. Let the professional team inject natural light into your building!
